Access Control Rules

Assign permissions and agents based on dynamic criteria

Automatically assign permissions and agents to users based on dynamic criteria. Access control rules provide flexible, scalable user access management without manual per-user configuration.

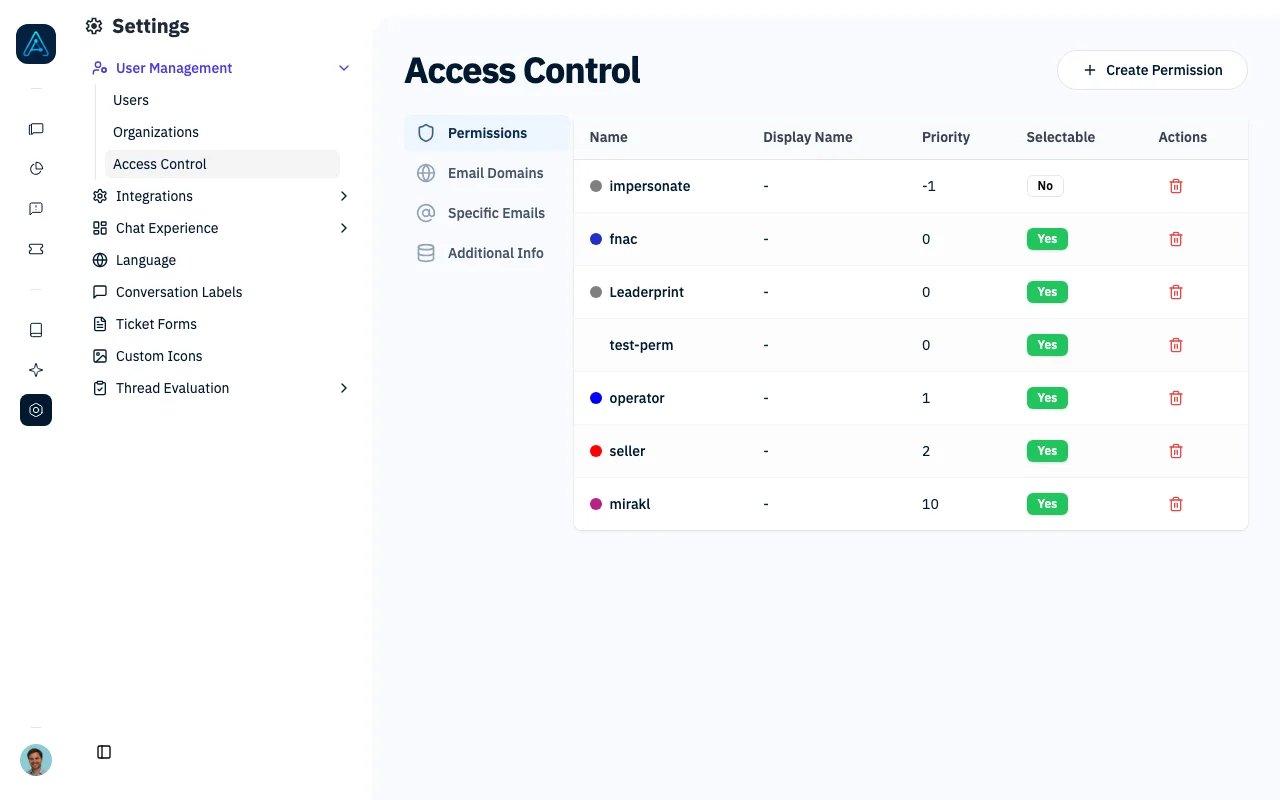

Access Control - Permissions

Overview

The system supports three types of access control rules:

1. Email Domain Rules - Assign permissions based on user email domains
2. Specific Email Rules - Assign permissions to specific email addresses
3. Additional Info Rules - Assign permissions based on custom user metadata

All rules support priority ordering, enabling fine-grained control when multiple rules could apply to a user.

Prerequisites

System Requirements

• AGO platform deployed and accessible
• Staff-level access to manage rules

Knowledge Required

• Understanding of AGO permission system
• JWT concepts (for additional info rules with JWT claims)

Configuration Required

• Permissions and agents created in the system
• (Optional) JWT field mapping configured for widget authentication

ℹ️ NOTE: Changes to rules take effect immediately on the user’s next request. No restart required.

---

Rule Types

Email Domain Rules

Automatically grant permissions to users whose email matches a specific domain pattern.

Use Cases:

• Grant company-wide access to all employees (e.g., @company.com)
• Provide universal access using wildcard domain (*)
• Assign different permissions to different partner organizations

Configuration:

Field	Type	Description
Domain	string	Email domain to match (e.g., company.com or * for all)
Permissions	UUID[]	Permissions to grant when domain matches
Agents	UUID[]	Agents to associate with matching users
Organization	UUID	Optionally link to specific organization
Priority	integer	Higher priority rules evaluated first
Is Active	boolean	Enable/disable the rule

Specific Email Rules

Grant permissions to individual users based on their exact email address.

Use Cases:

• Provide VIP access to specific customers
• Grant special permissions to external consultants
• Create exceptions for individual users

Configuration:

Field	Type	Description
Email	string	Exact email address to match
Permissions	UUID[]	Permissions to grant
Agents	UUID[]	Agents to associate
Priority	integer	Higher priority rules evaluated first
Is Active	boolean	Enable/disable the rule

Additional Info Rules

Grant permissions based on key-value data stored in the user’s additional_info field. This provides maximum flexibility for custom business logic.

Use Cases:

• Grant premium features to subscription tier users
• Provide regional access based on user location
• Assign permissions based on user roles or departments
• Create complex conditional access patterns
• Use JWT claims extracted during authentication

Configuration:

Field	Type	Description
Conditions	array	List of key-value conditions (ALL must match - AND logic)
Permissions	UUID[]	Permissions to grant when all conditions match
Agents	UUID[]	Agents to associate
Priority	integer	Higher priority rules evaluated first
Is Active	boolean	Enable/disable the rule

Condition Fields:

Field	Type	Description
Key	string	Field name in user’s additional_info JSON (snake_case)
Value	string	Expected value for that field
Negate	boolean	If true, grant when condition does NOT match

⚠️ WARNING: All conditions within an Additional Info Rule must match (AND logic). For OR logic, create separate rules.

---

Data Sources for Additional Info

1. JWT Claims

When widget authentication uses JWT, configured fields are automatically extracted and flattened:

JWT Configuration Example:

// AGO Config: widget_jwt_fields_mapping
[
  {"jwt_field": "department", "label": "Department"},
  {"jwt_field": "custom.tier", "label": "Subscription Tier"},
  {"jwt_field": "location.region", "label": "Region"}
]

Resulting additional_info:

{
  "jwt_extracted_fields": {
    "Department": "IT",
    "Subscription Tier": "premium",
    "Region": "europe"
  },
  "department": "IT",              // ← Use these for rules
  "subscription_tier": "premium",  // ← Flattened & normalized
  "region": "europe"               // ← Ready for permissions
}

Field Name Normalization:

JWT Field Label	Flattened Key
”Department”	department
”Employee ID”	employee_id
”User Role”	user_role
”subscription-tier”	subscription_tier
”Region Name”	region_name

💡 TIP: Always use the flattened key format (snake_case) when creating rules, not the nested jwt_extracted_fields path.

2. Manual API Updates

Update user’s additional_info via API.

3. Integration Data

Sync from external systems (CRM, subscription platforms, etc.)

---

Type Handling

The system intelligently handles type conversion when matching conditions:

Rule Value (string)	Matches
"25"	Integer 25 or float 25.0
"true" / "false"	Boolean true / false
"3.14"	Float 3.14
"premium"	String "premium"

This means you can enter values in the UI as text, and they’ll correctly match numeric or boolean values.

---

Condition Examples

Example 1: Premium Subscribers (from JWT)

{
  "name": "Premium Subscribers",
  "conditions": [
    {
      "key": "subscription_tier",
      "value": "premium",
      "negate": false
    }
  ],
  "permissions": ["premium_access"]
}

Example 2: Non-Trial Users (using negate)

{
  "name": "Non-Trial Users",
  "conditions": [
    {
      "key": "account_type",
      "value": "trial",
      "negate": true
    }
  ],
  "permissions": ["full_access"]
}

Example 3: Multiple Conditions (AND logic)

{
  "name": "Enterprise European Users",
  "conditions": [
    {
      "key": "subscription_tier",
      "value": "enterprise",
      "negate": false
    },
    {
      "key": "region",
      "value": "europe",
      "negate": false
    }
  ],
  "permissions": ["enterprise_eu_access"]
}

---

How Rules Are Evaluated

When determining a user’s permissions, the system:

1. Checks if user is staff or superuser (grants all permissions)
2. Collects permissions from direct user assignments
3. Evaluates wildcard domain rules (domain = "*")
4. Evaluates specific email rules matching user’s email
5. Evaluates email domain rules matching user’s domain
6. Evaluates additional info rules where all conditions match
7. Returns all collected permissions ordered by priority

Key Points:

• Rules are cumulative - users receive permissions from ALL matching rules
• Priority affects ordering but doesn’t prevent lower-priority rules from applying
• Changes take effect immediately on next request

---

API Endpoints

⚠️ WARNING: All endpoints require staff-level access.

List All Rules

GET /api/tenant-access

Returns all email domain rules, specific email rules, and additional info rules.

Email Domain Rules

Method	Endpoint
POST	/api/tenant-access/email-domain
GET	/api/tenant-access/email-domain/{rule_id}
PUT	/api/tenant-access/email-domain/{rule_id}
DELETE	/api/tenant-access/email-domain/{rule_id}

Specific Email Rules

Method	Endpoint
POST	/api/tenant-access/specific-email
GET	/api/tenant-access/specific-email/{rule_id}
PUT	/api/tenant-access/specific-email/{rule_id}
DELETE	/api/tenant-access/specific-email/{rule_id}

Additional Info Rules

Method	Endpoint
POST	/api/tenant-access/additional-info
GET	/api/tenant-access/additional-info/{rule_id}
PUT	/api/tenant-access/additional-info/{rule_id}
DELETE	/api/tenant-access/additional-info/{rule_id}

---

Best Practices

1. Use Priority Wisely: Assign higher priorities to more specific rules
2. Test Rules: Verify with test users before deploying
3. Document Business Logic: Add clear names and descriptions
4. Regular Audits: Periodically review and remove unused rules
5. Avoid Conflicts: Be mindful of overlapping rules
6. Use Negate Carefully: Negative conditions can be harder to understand
7. Keep Conditions Simple: Complex rules impact evaluation performance

---

Security Considerations

• All rule management endpoints require staff-level access
• Rules are evaluated server-side and cannot be bypassed by clients
• Changes take effect immediately
• Follow the principle of least privilege when designing rules
• Regularly audit which users have which permissions through rule assignments

---

Troubleshooting

User not getting expected permissions

Problem: Rule appears correct but user doesn’t have permissions.

Solutions:

1. Verify rule is active (is_active: true)
2. Check all conditions match (AND logic for additional info rules)
3. Verify key names use correct format (snake_case, not labels)
4. Check user’s additional_info contains expected values
5. Review if a higher-priority rule is affecting results

Additional info rule not matching

Problem: User has correct data but rule doesn’t apply.

Solutions:

1. Verify key is in snake_case format (e.g., subscription_tier not Subscription Tier)
2. Check type handling - string "25" should match int 25
3. Ensure the key exists at the root level of additional_info, not nested
4. Use API or admin to inspect actual user additional_info values

JWT claims not appearing in additional_info

Problem: JWT fields configured but not showing in user data.

Solutions:

1. Verify widget_jwt_fields_mapping is correctly configured
2. Check JWT token actually contains the specified fields
3. Ensure user authenticates via widget (not other auth methods)
4. Review field normalization - labels become snake_case keys

Too many permissions granted

Problem: Users receiving more permissions than expected.

Solutions:

1. Remember rules are cumulative - check for overlapping rules
2. Review wildcard domain rules (*) which apply to everyone
3. Check if user has direct permission assignments
4. Audit all active rules for unintended matches

---
